WALCO® Z – Wall Connector
WALCO® Z | Connecting timber frame constructions up to 10,8 kN*
- Minimum timber width from 60 mm
- High level of prefabrication

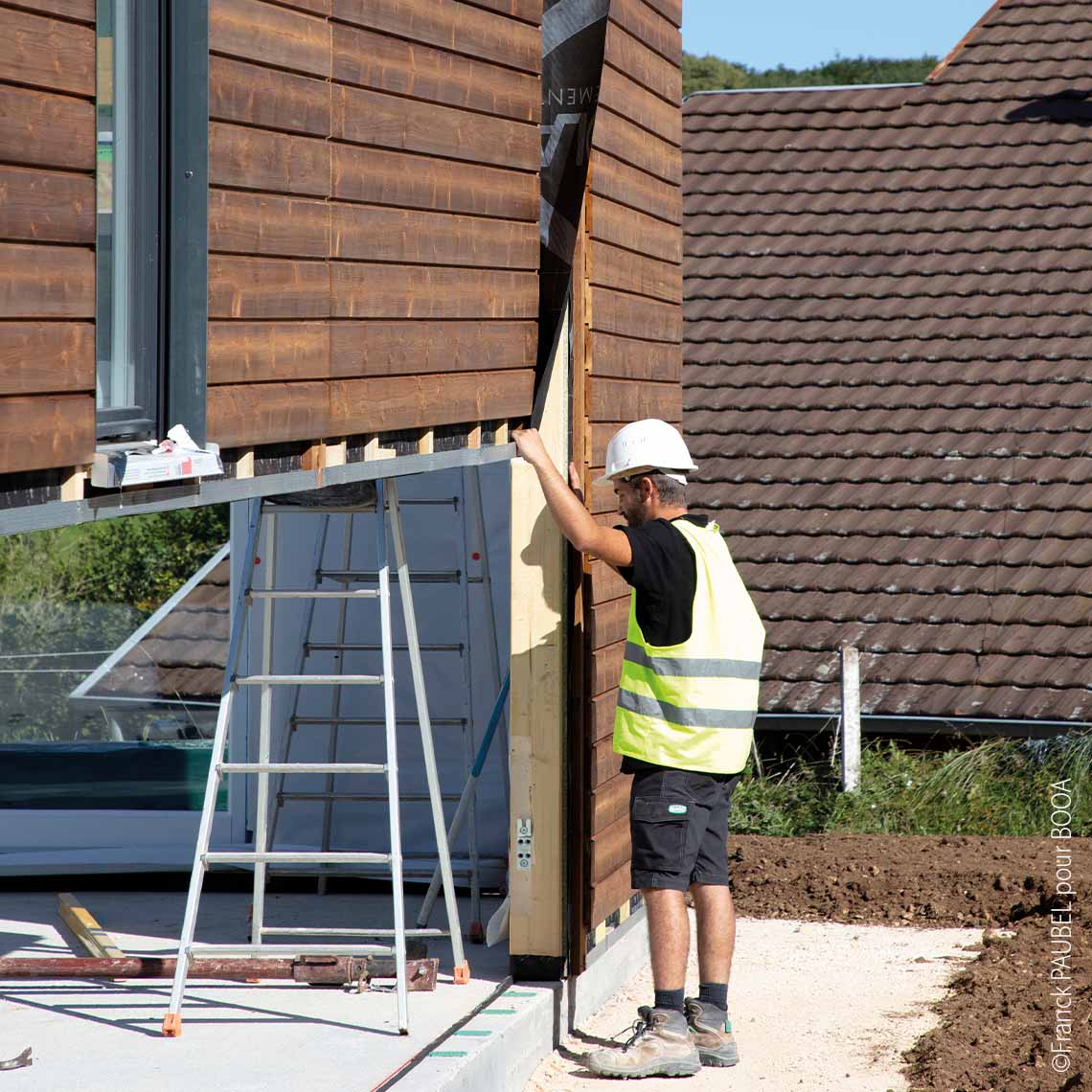

- Simple and easy – the wall panels are plugged together
- Self-tightening, stable and invisible – the structure is stable from the first corner onwards
- Wood frame and plywood board walls frictionally interconnected

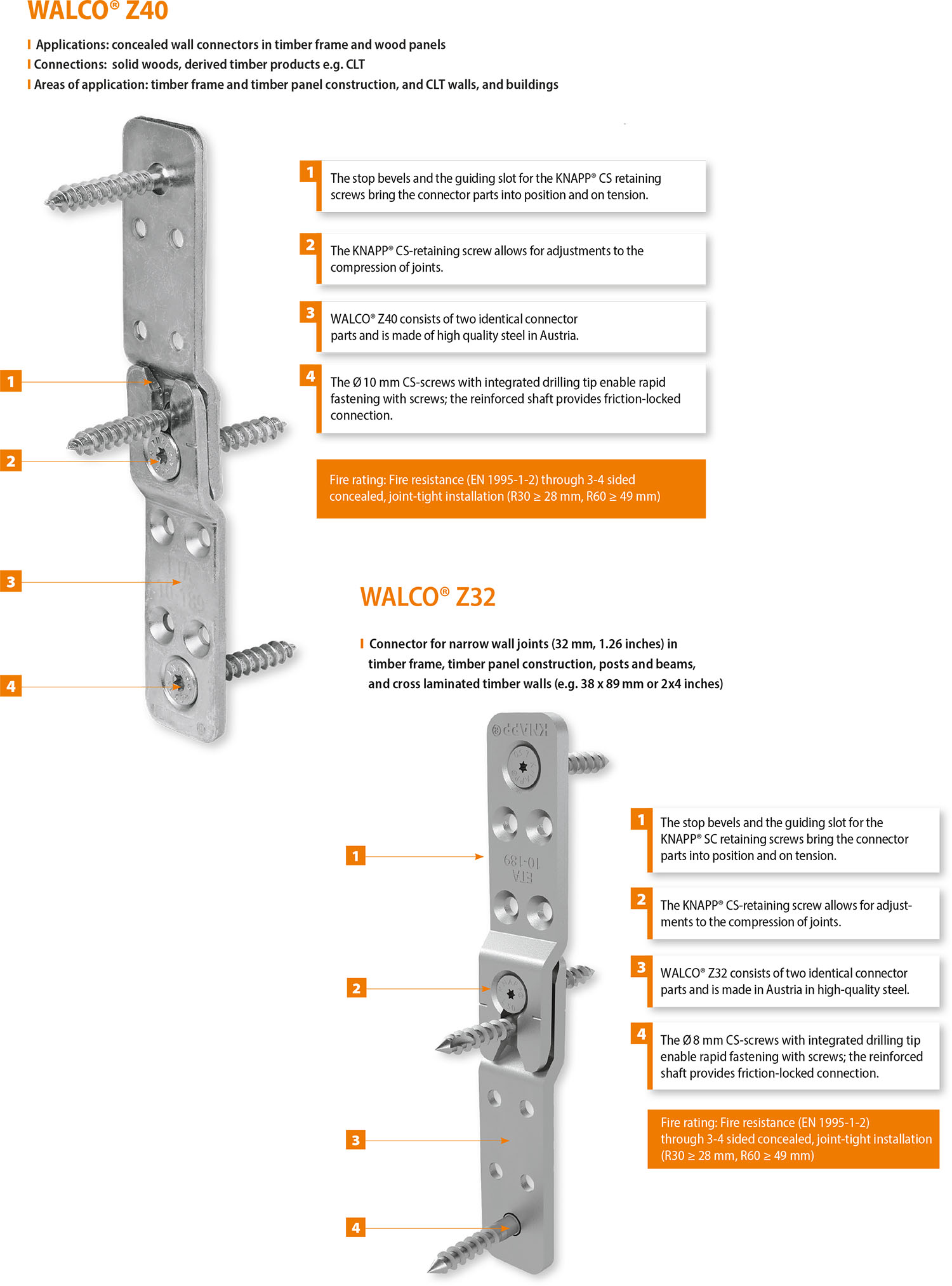

WALCO® Z40
WALCO® Z32

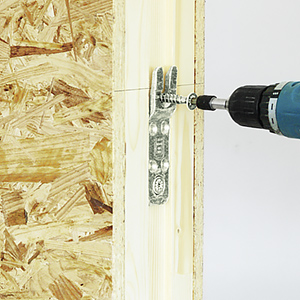

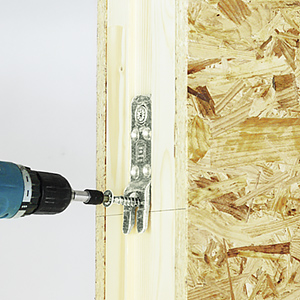

2 pc. SK 10x60 mm screws per connector plate (wall 1)

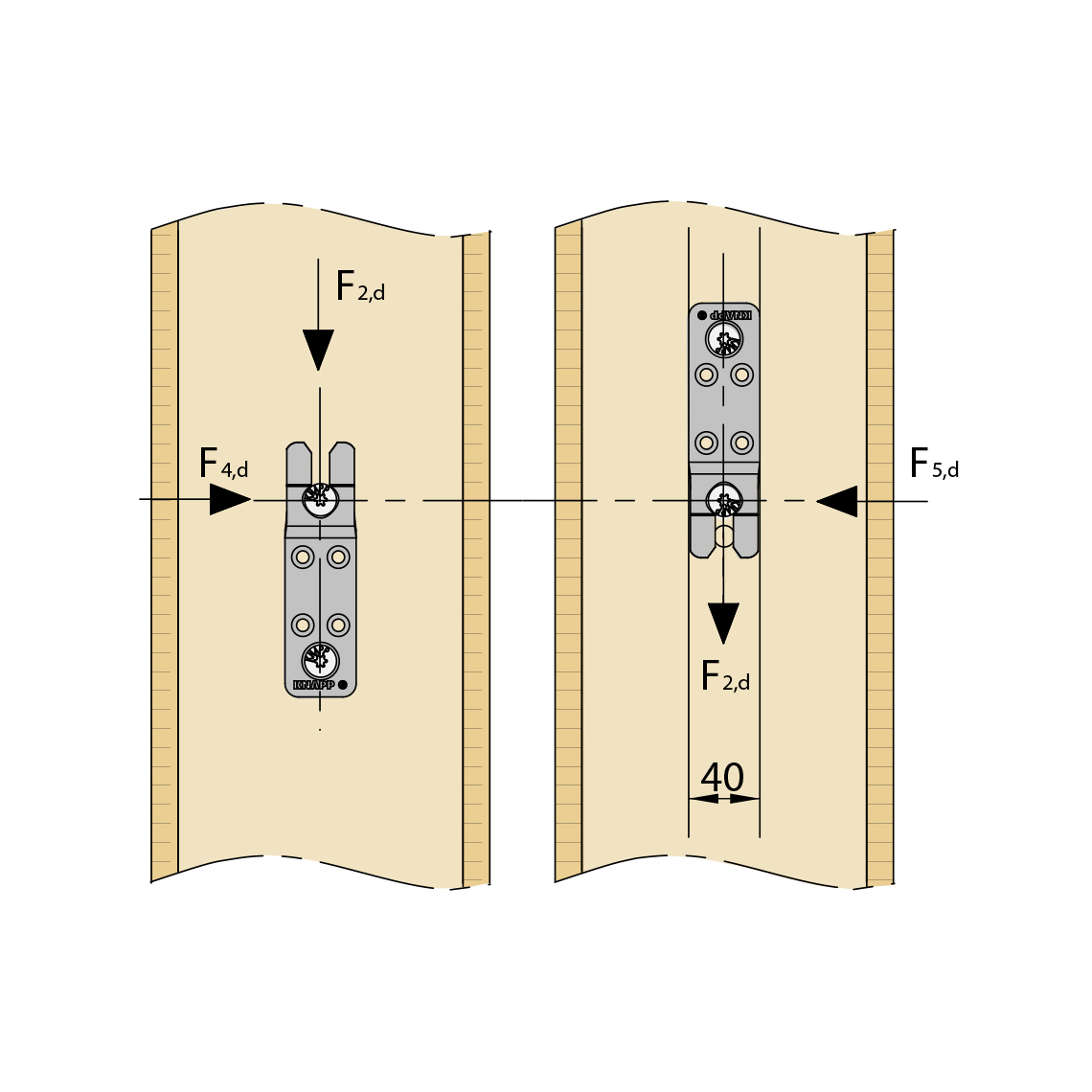

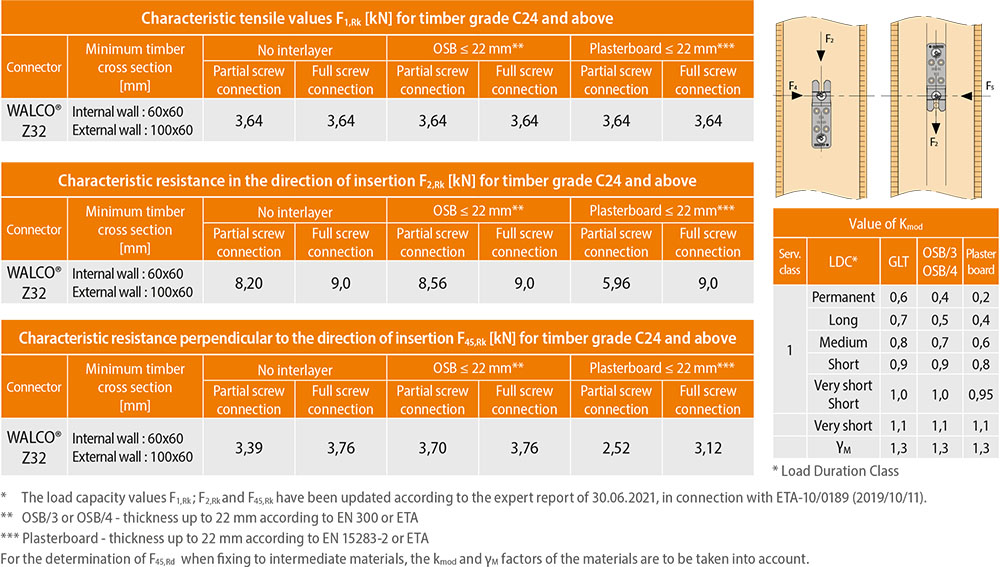

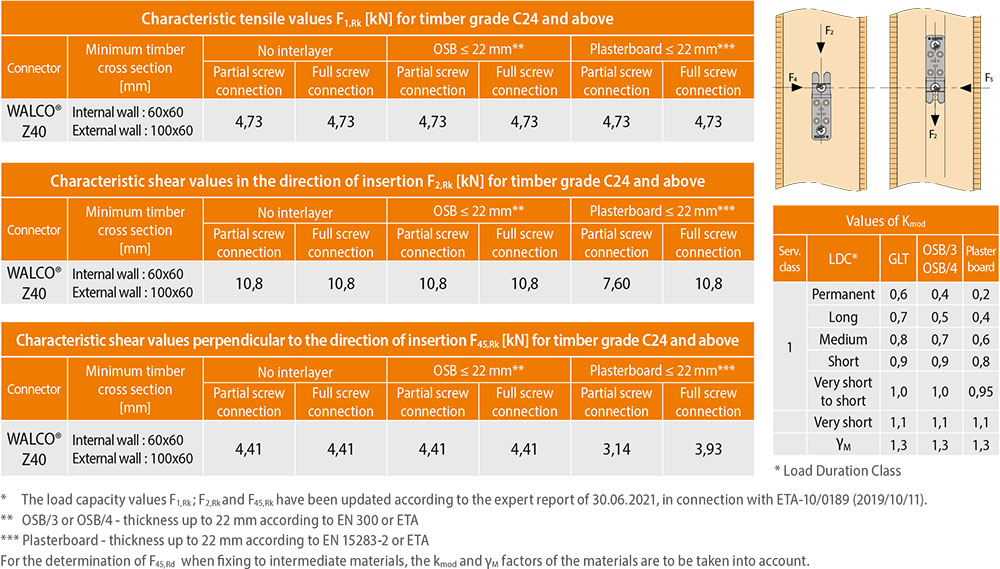

F2,Rk* 10 kN | F45,Rk* 8,6 kN
2 pc. SK 10x60 mm screws per connector plate (wall 1)
F2,Rk* 10 kN | F45,Rk* 8,6 kN

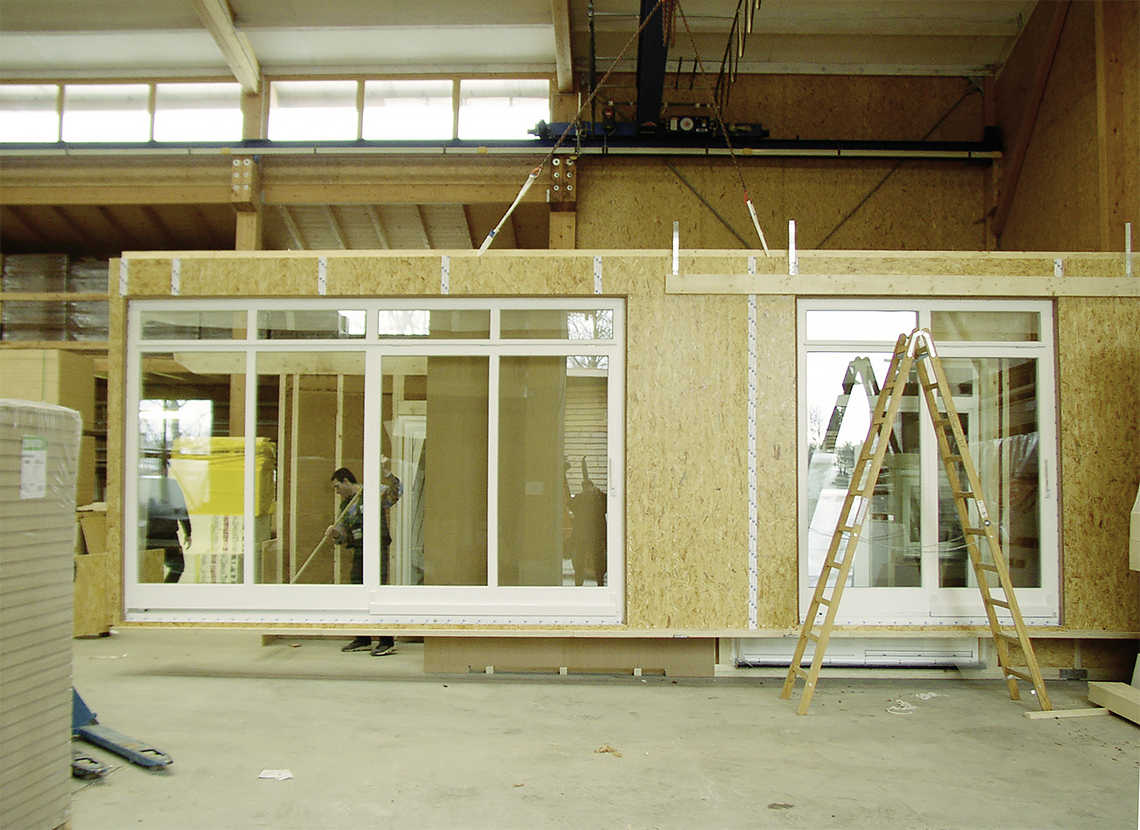

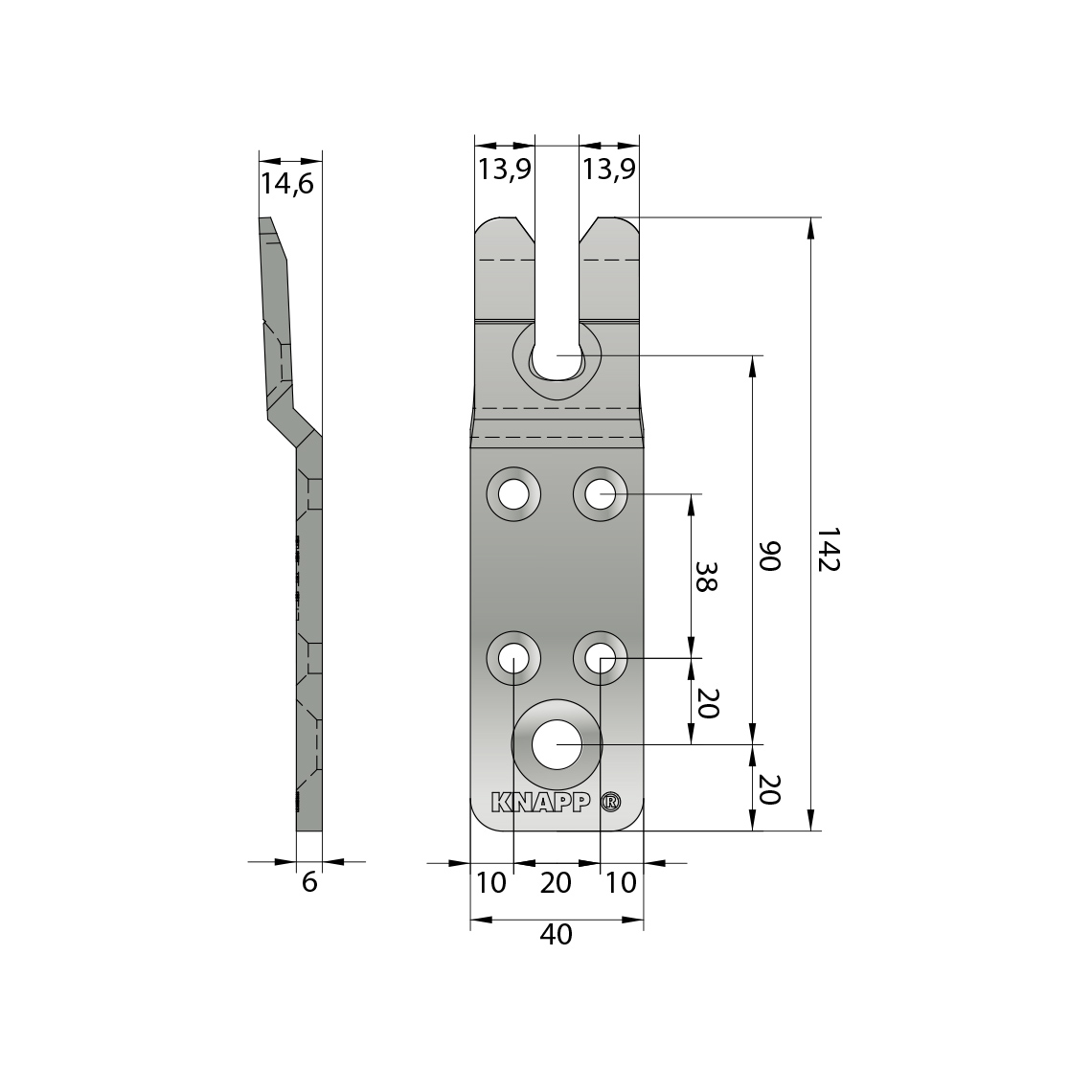

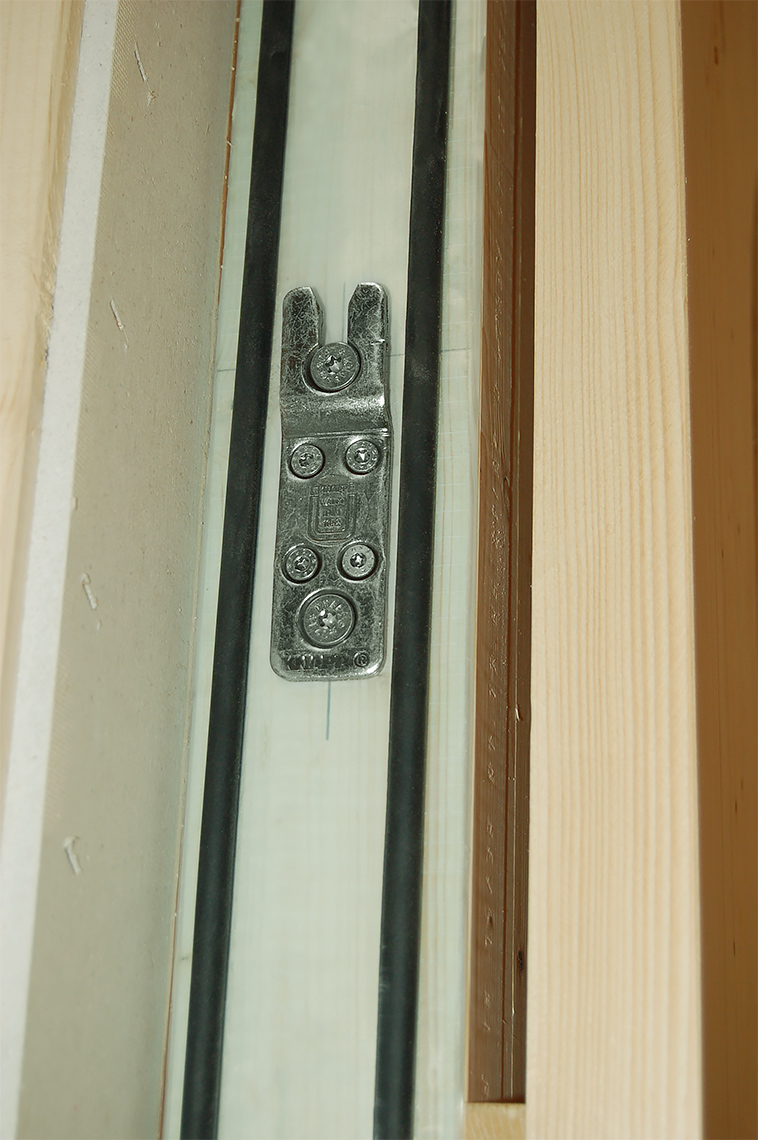

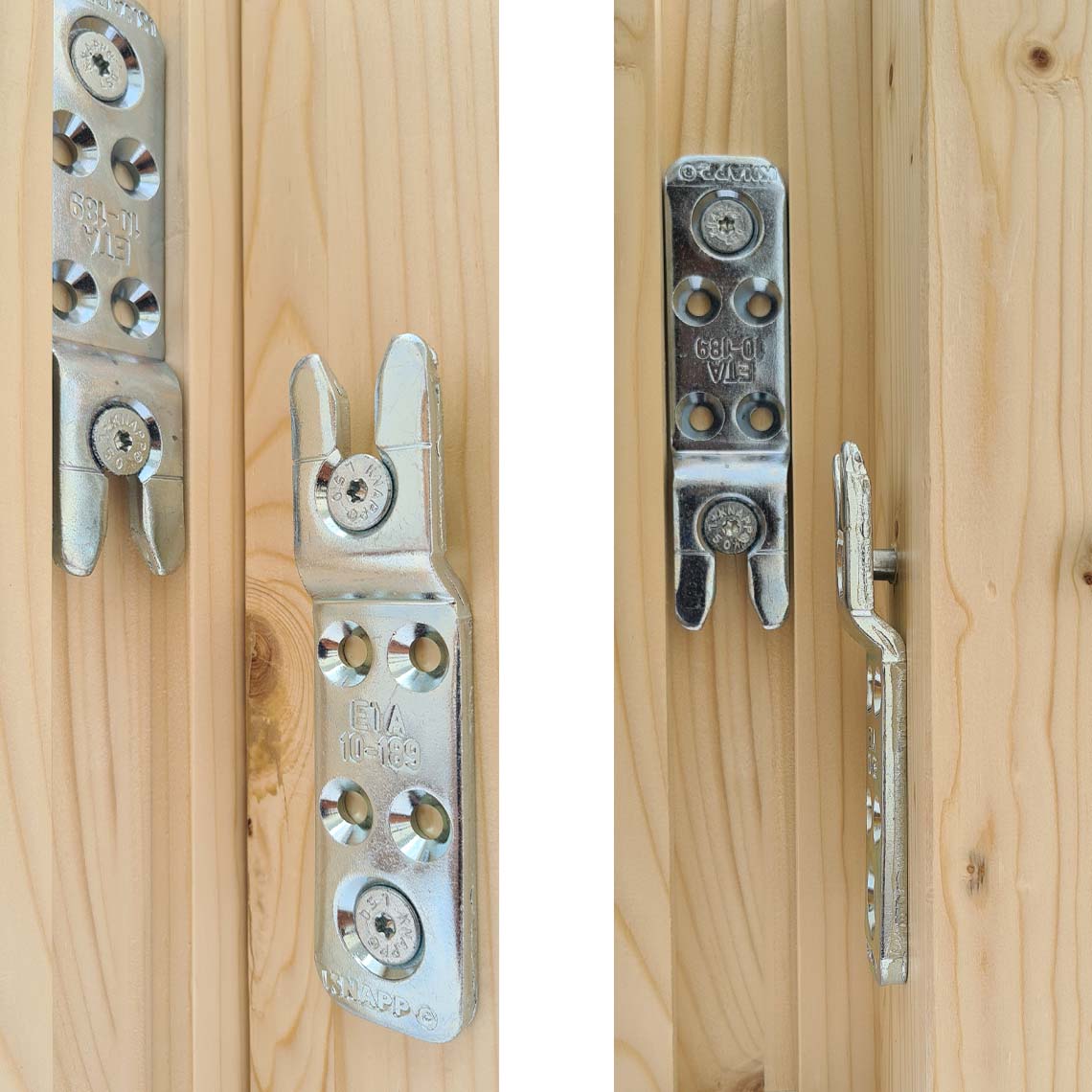

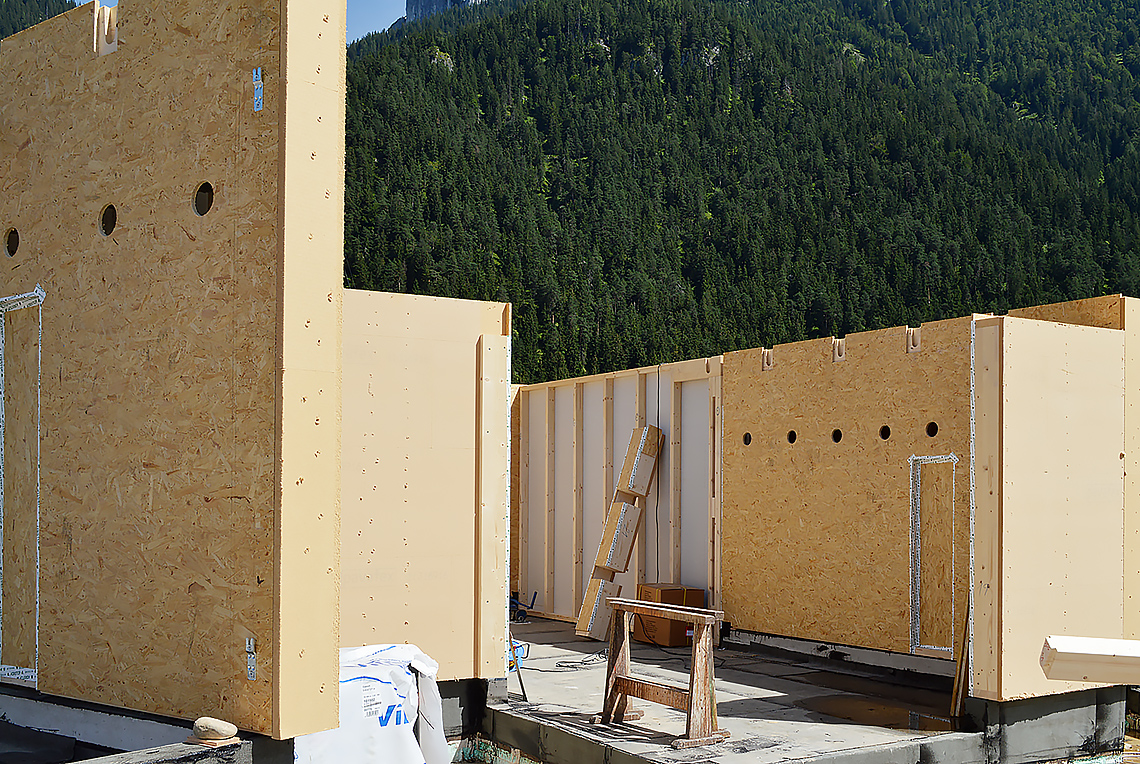

The WALCO® Z40 set consists of two identical brackets made out of blue-galvanized steel. Commonly used gaskets can be installed on the prefabricated wall panels. When sliding the wall panels together, the brackets hook into each other in a dovetail-like manner and tighten up the connection. This allows the wall panels to be pre-manufactured to a large degree in a superior and advanced quality and then connected on site with no screwing or nailing needed.
System advantages:
- Efficient wall connectors for timber frame and wood panel construction.
- For timber widths from 60 mm and upwards.
- Large degree of prefabrication – no screwing or nailing on-site.
- Simple and easy – the wall panels are snapped together.
- Stable from the first wall corner on
- For timber structures according to DIN 1052 and Eurocode 5 (EN 1995-1-1).
- ETA certified (even for hardwood).
