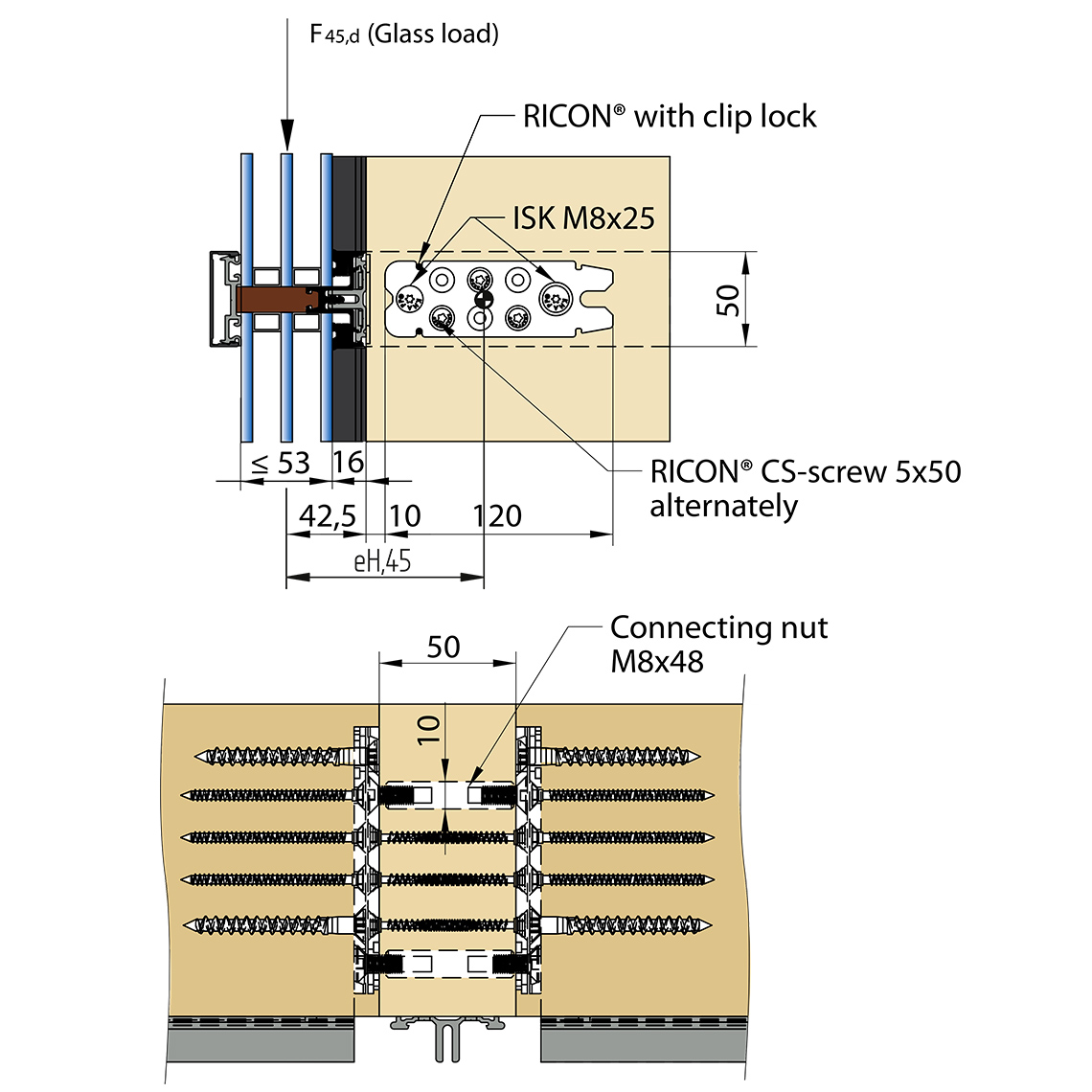

RICON®-system double connection (DA)
1
The dove-tail stamping makes it very easy to catch the CS-screws and push together the connector. It also ensures tightness.
2
RICON® consists of two identical parts. It is made of premium quality steel and ist hot-dip galvanized and made in Austria.
3
Ø = 8 mm RICON® CS-screws. These adjustable holding screws compensate fabrication tolerances. The reinforced shaft with integrated stop guarantees exact positioning.
4
Ø = 5 mm RICON® CS-screws. These adjustable holding screws compensate fabrication tolerances. The reinforced shaft with integrated stop guarantees exact positioning.
5
Clip in the stainless spring steel stirrup into the locating slots prior to final assembly. It locks the connection against the slide-in direction and can be released again.
The dove-tail stamping makes it very easy to catch the CS-screws and push together the connector. It also ensures tightness.
RICON® consists of two identical parts. It is made of premium quality steel and ist hot-dip galvanized and made in Austria.
Ø = 8 mm RICON® CS-screws. These adjustable holding screws compensate fabrication tolerances. The reinforced shaft with integrated stop guarantees exact positioning.
Ø = 5 mm RICON® CS-screws. These adjustable holding screws compensate fabrication tolerances. The reinforced shaft with integrated stop guarantees exact positioning.
Clip in the stainless spring steel stirrup into the locating slots prior to final assembly. It locks the connection against the slide-in direction and can be released again.

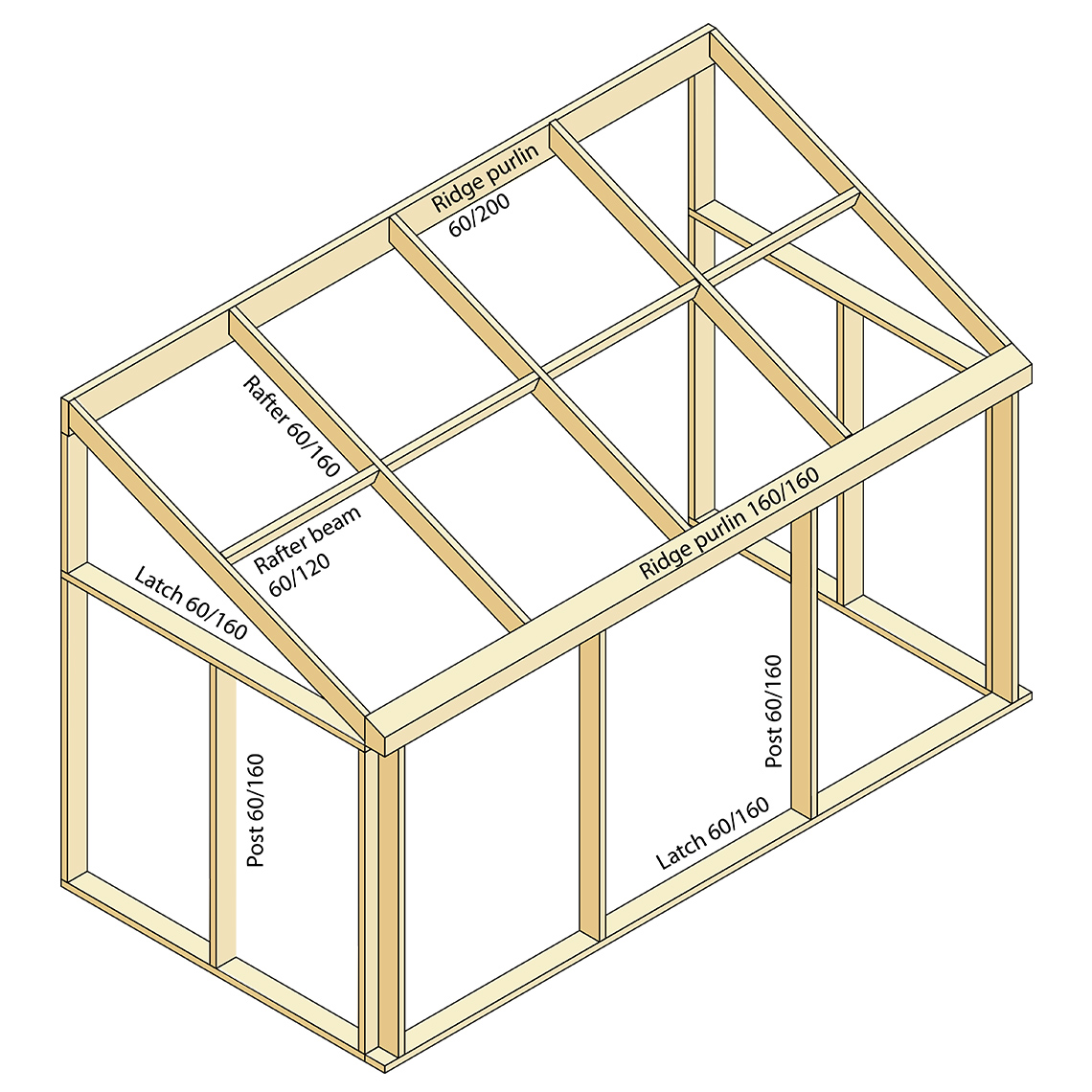

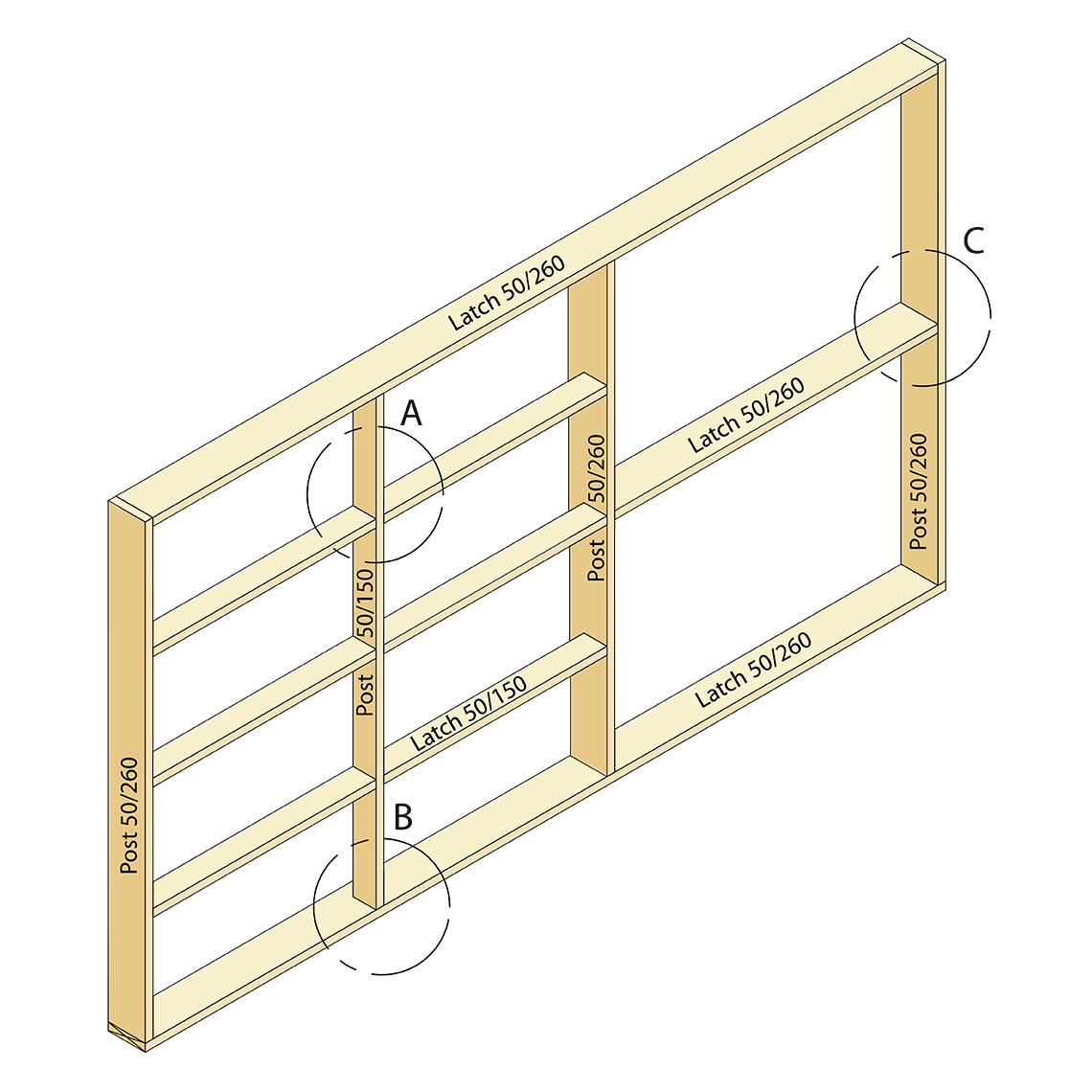

RICON® | The connector for Post-Beam Wood-Glass-Facade up to 26 kN
The main and secondary beam joint connector RICON® consists of two identical connector plates made of steel. An optional lock can be installed to latch the connector. The RICON® is recessed and non-visible, and can be used with timber widths as little as 50 mm. RICON® is available in a single connector set and double connector set for cross joints in six sizes 60, 80, 100, 120, 140 and 160/40.
NEW and improved:
- Better grip on the timber by means of a star-shaped embossing on the backside of the connector plate.
- Mounting also on intermediate layers up to 26 mm (i.e. OSB).
- Special coating for increased corrosion resistance for indoor swimming pools, riding halls, stables and farm buildings (tested).
- Approval for off-centered glass loads up to 860 kg given by an additional reinforcing plate.
- ETA extension for Hardwood (i.e. oak, larch, beech)
- Concealed – connectors are recessed and non-visible.
- Disassembly and reassembly possible if needed.
- High degree of prefabrication – fast and exact assembly on-site.
- Universal – connectors can fasten timber to timber, to steel and to concrete components.

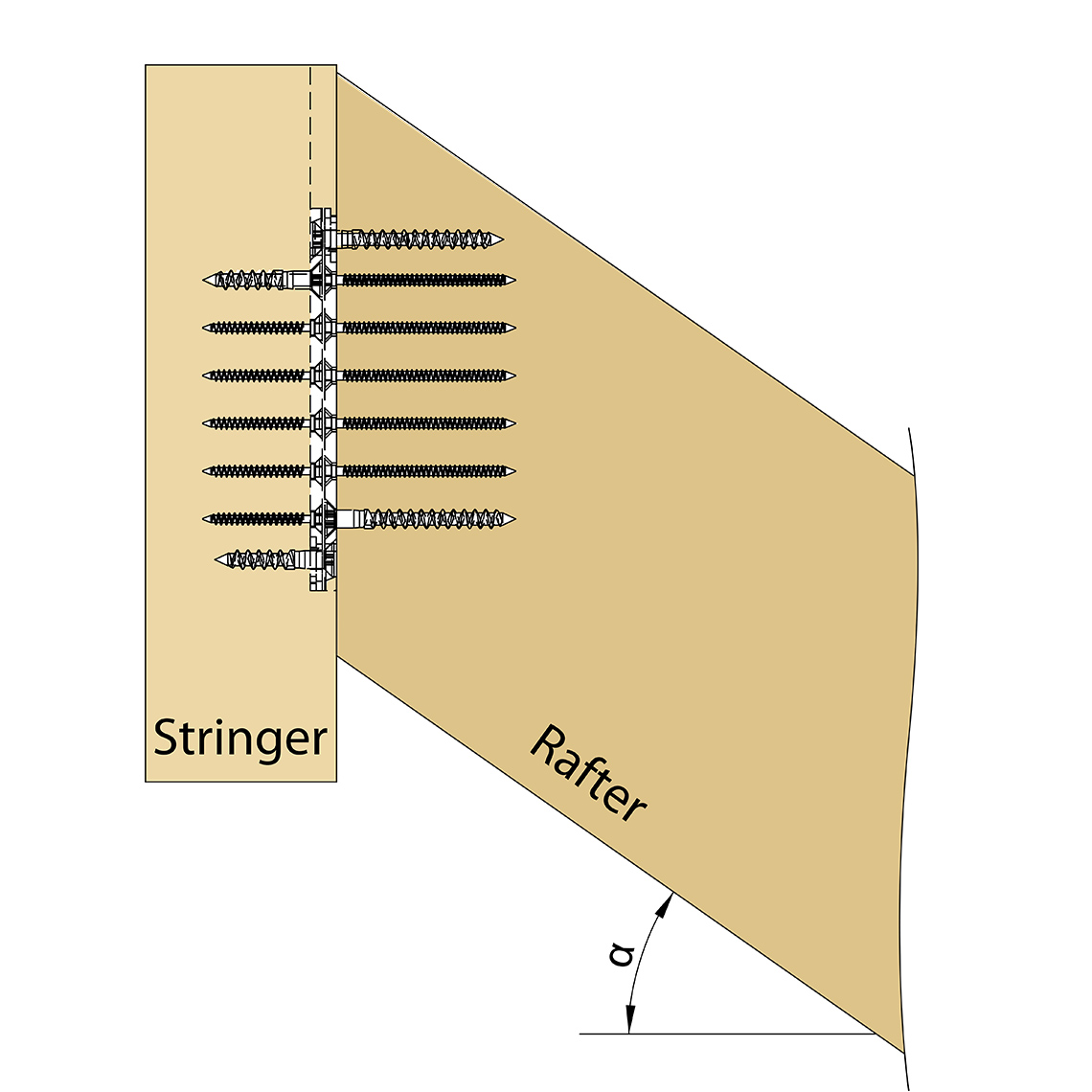

- Unique – can also be used for polygon façades.
- Slim timber dimension – can be mounted on timber with thickness as little as 50mm and up to 450mm.
- Labor efficient – no additional screwing or nailing needed when assembled on site.
- Adjustable – can be adjusted according to joints intervals and construction tolerances.
- Versatile – can be used for single joint and double joint applications.
- Flexible – direction of assembly can even be from the outside towards the inside and from down upwards.
- Safety – fire resistance according to (DIN 4102-2) by 4-sided concealed mounting (R30 ≥ 20 mm, R60 ≥ 40 mm).
- Neutral – can be used in combination with different exterior profile systems such as RP, Schüco, MBJ, Gutmann, RAICO, Stabalux, … etc.
Load capacity tables
The interactive tables in Excel, available for download by clicking on the link below, provide the load capacity according to ETA-10/0189. This tool helps to quickly and easily select the connectors appropriate for the type of connection based on the service class and the type of timber.
The interactive load capacity table is available under the tab „Product downloads“
