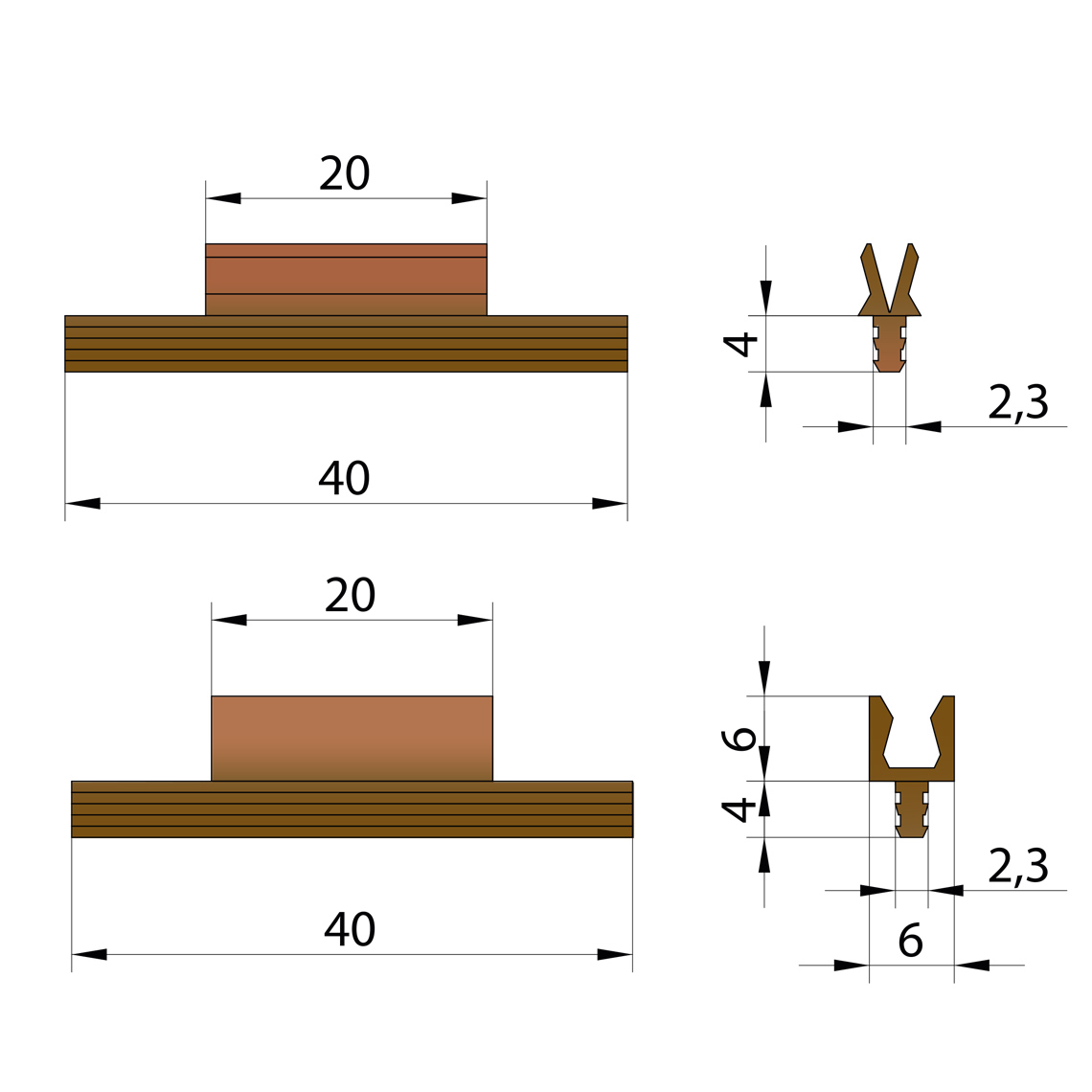

miniKLICK snap connector, plastic

miniKLICK snap connector, plastic

Article number: K059
miniKLICK snap connector made of plastic
Price: for logged in users only
Amount: 500 pairs per unit

The KLICK and sKLICK connectors are connectors that serve to snap together and mount small components with small dimensions, such as moldings. The KLICKpro is an adapter for KLICK and sKLICK, and serves as a groove. The sKLICK and KLICKpro combined, find its use in applications of window linings for inside and outside. The miniKLICK is a 2-piece fastener for small trims. All KLICK-connectors are made of UV and weather resistant plastic.

  • Universal – for components with very small dimensions.
  • Non-visible – concealed fasteners for many applications, such as panels, covers, and trims.
  • Efficient – high degree of prefabrication.
  • Simple and fast – just snap components in place.
  • Cost effective – reduces labor, no screwing or nailing necessary, no need for covering nails and screws afterwards. Components can be painted before mounting.
  • Disassembly possible if needed.
  • Self-tightening, also used for clamping when components are glued together.
  • Can be used with standard screws.
Material

Plastic – PA6, darkbrown

Coating

none

Connector type

2-part click on connector

Mounting

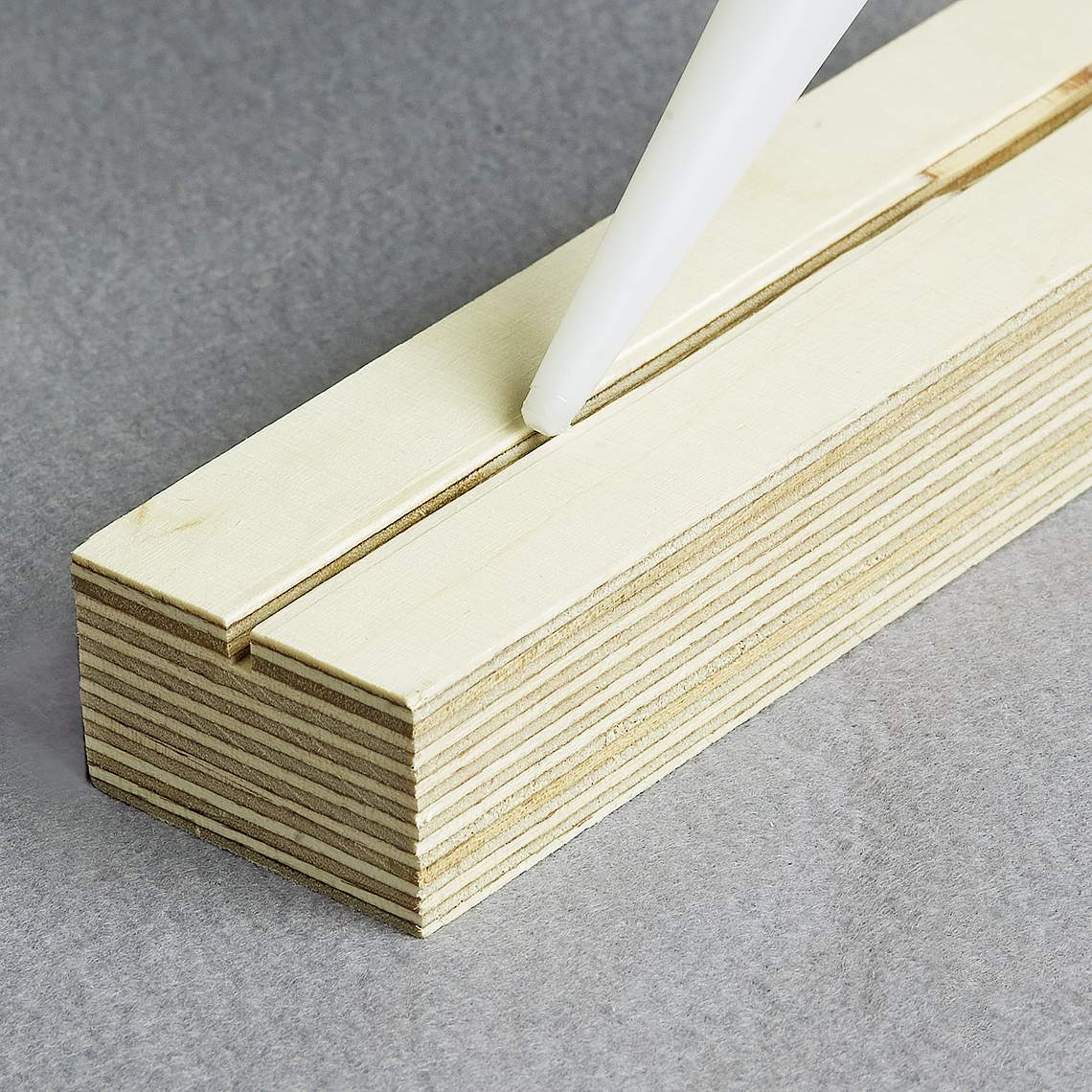

Gluing into pre-cutted groove with original Knapp PU+ adhesive

Advantages

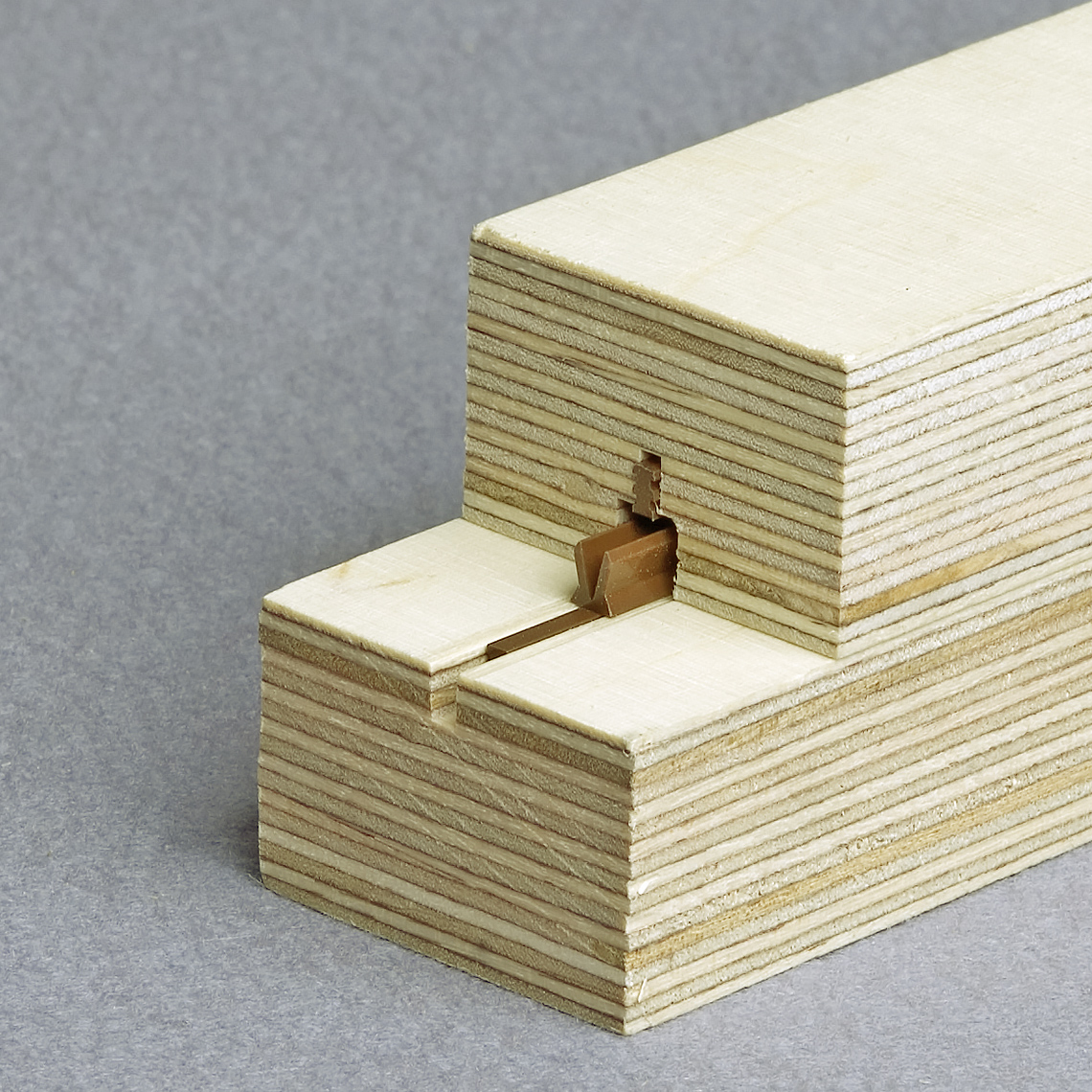

Concealed, selftightening dovetail connector for glue on mounting.

Installation

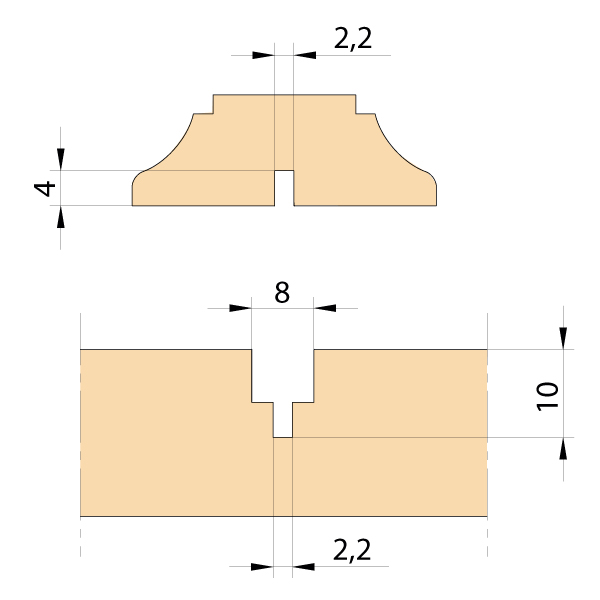

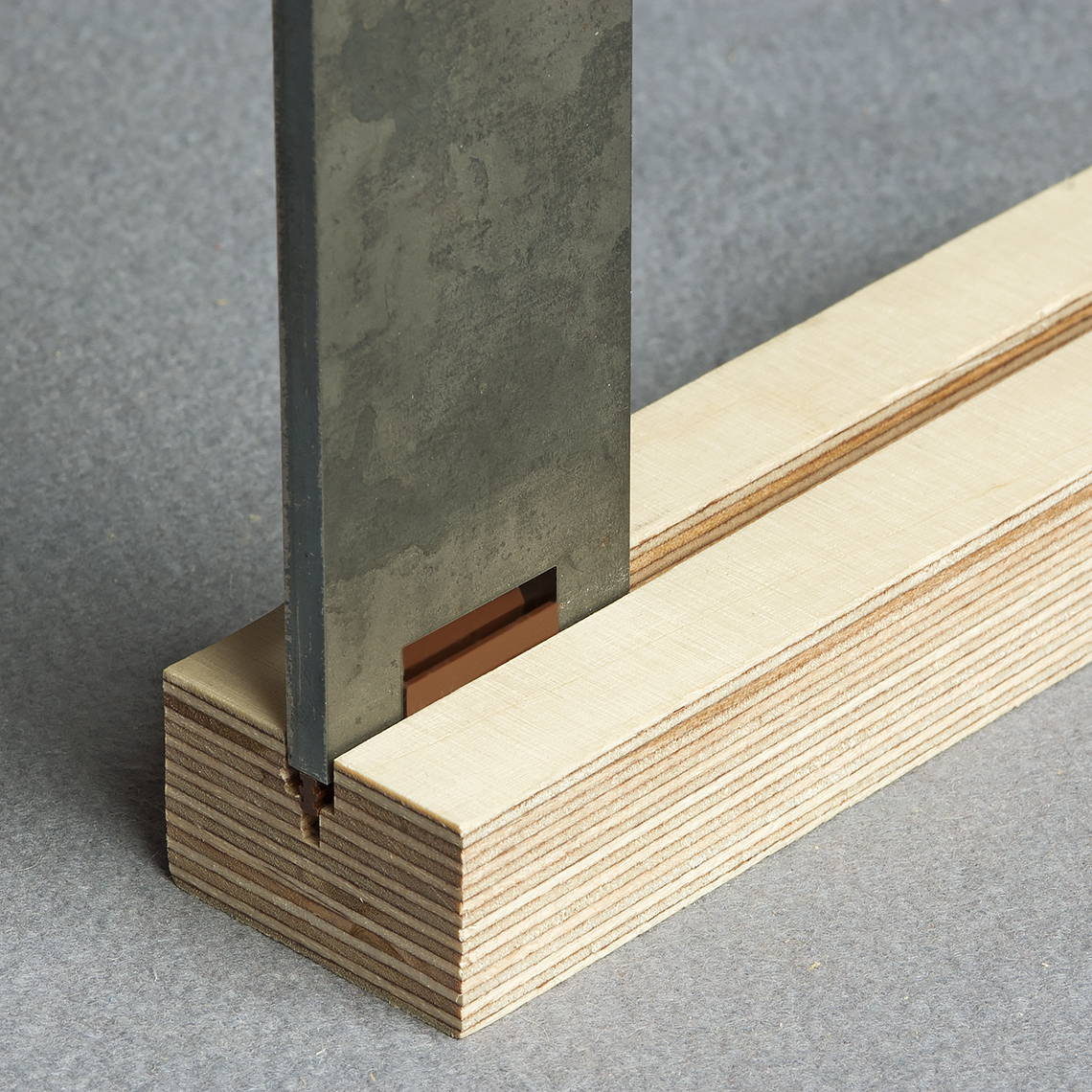

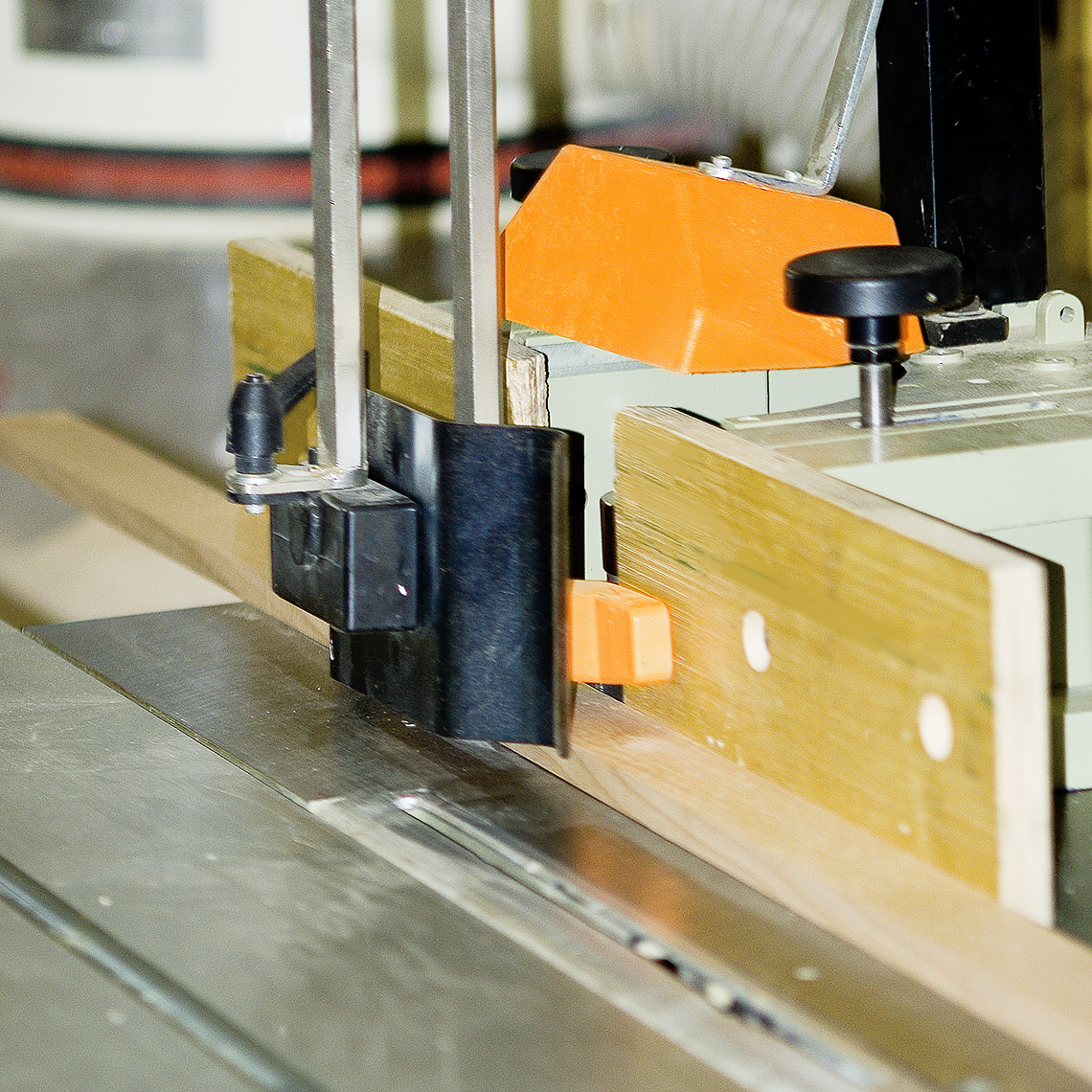

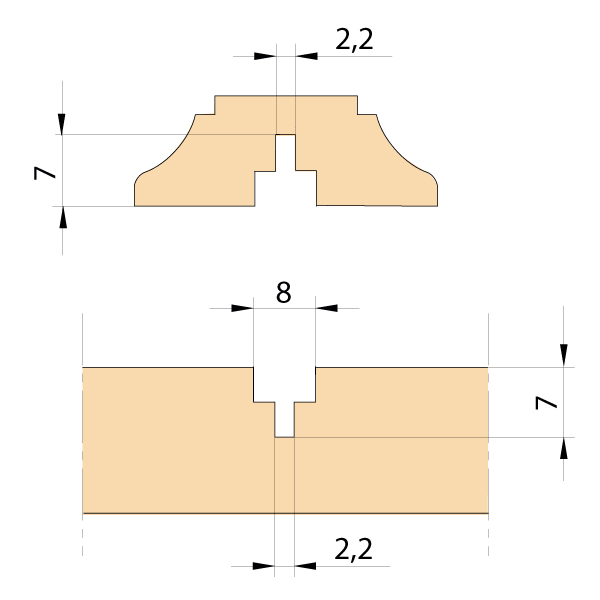

With spindle moulder and original Knapp cutting saw blade (2,2-6×120 mm, with Ø 30 bore)

Suitable materials

Solid wood, wood panels, composite materials

Application

All kinds of mouldings, interior glazing

Furniture and interior design | Download
Technical data and construction manual | Download
Door and window construction | Download
