FIYU® FAST 10 – Plug-in connector for furniture and interior fittings
FIYU® – simply connect, securely, quickly, and reversibly

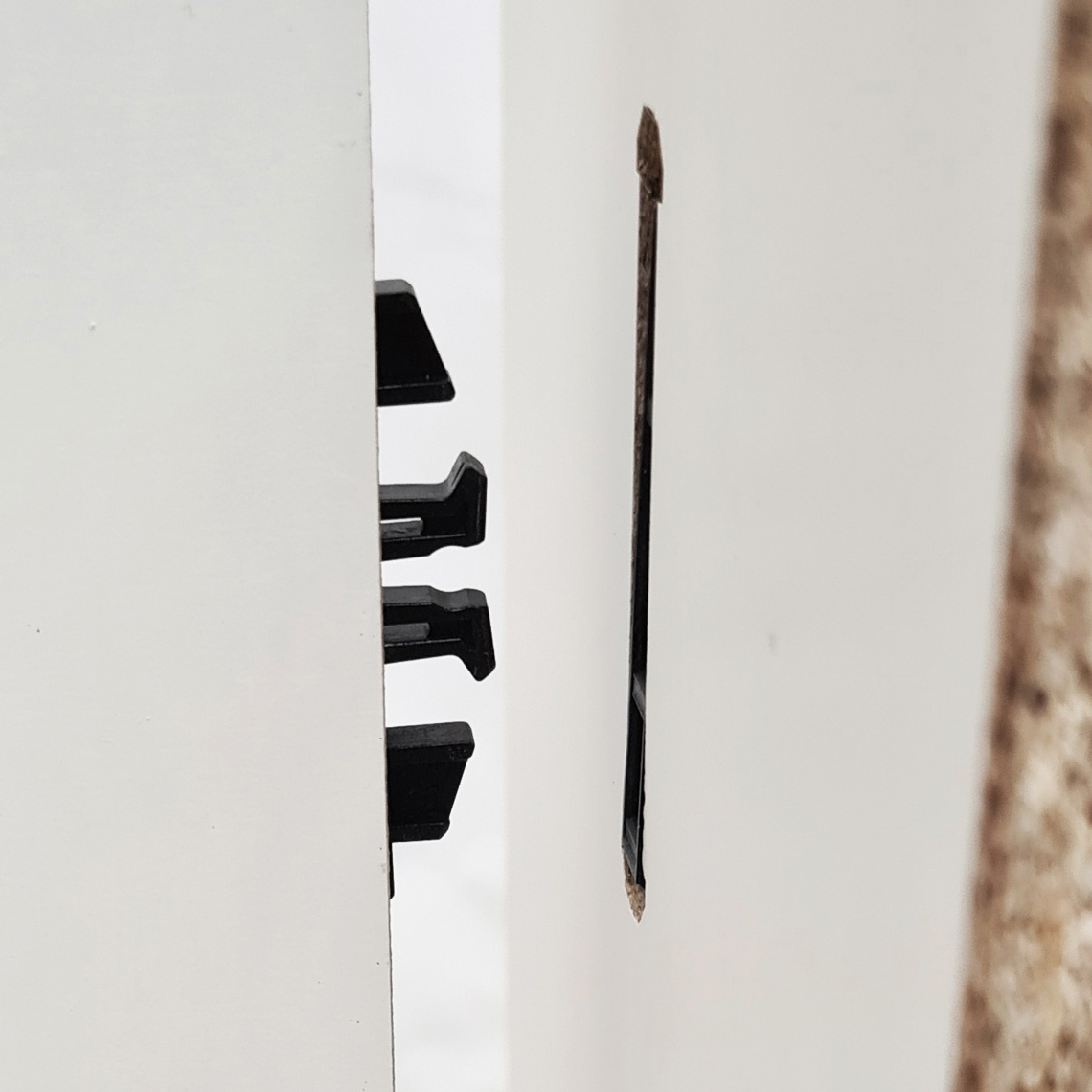

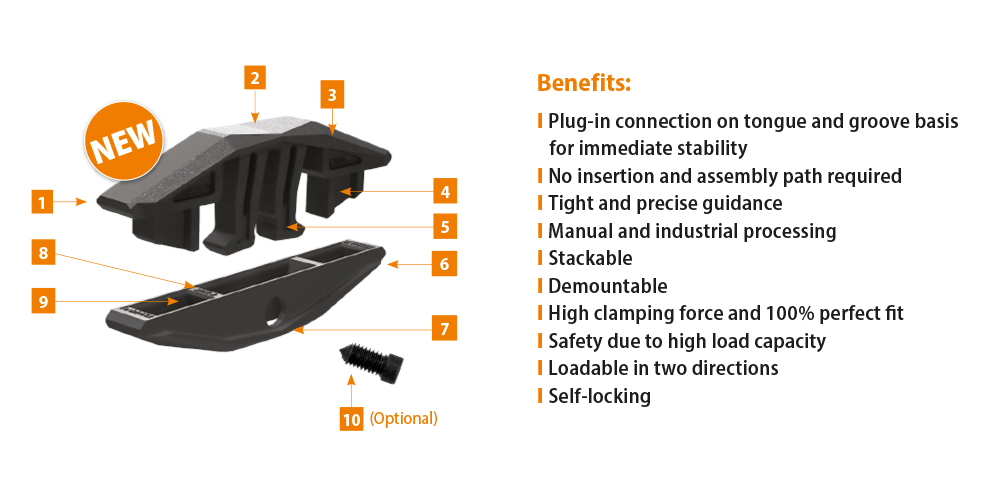

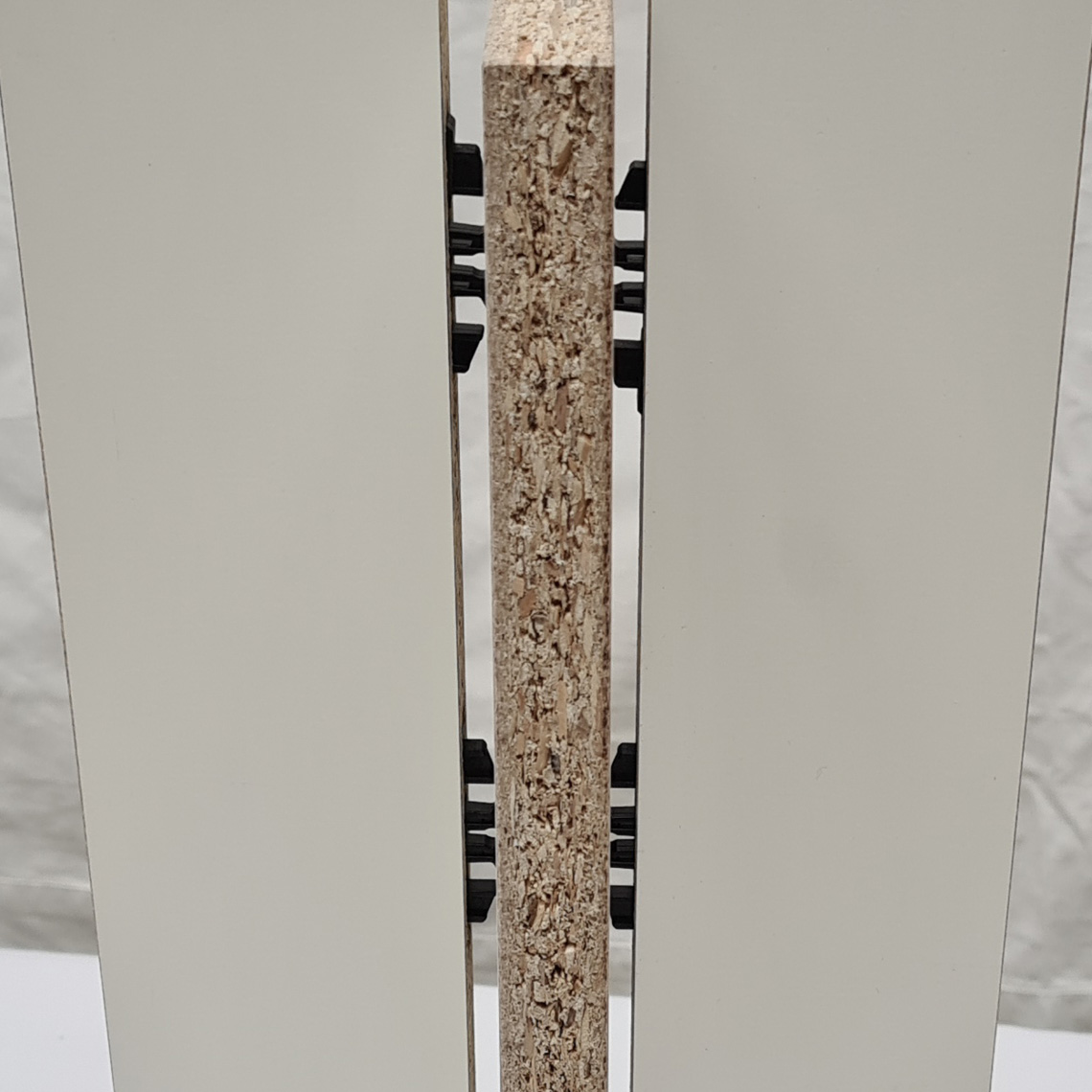

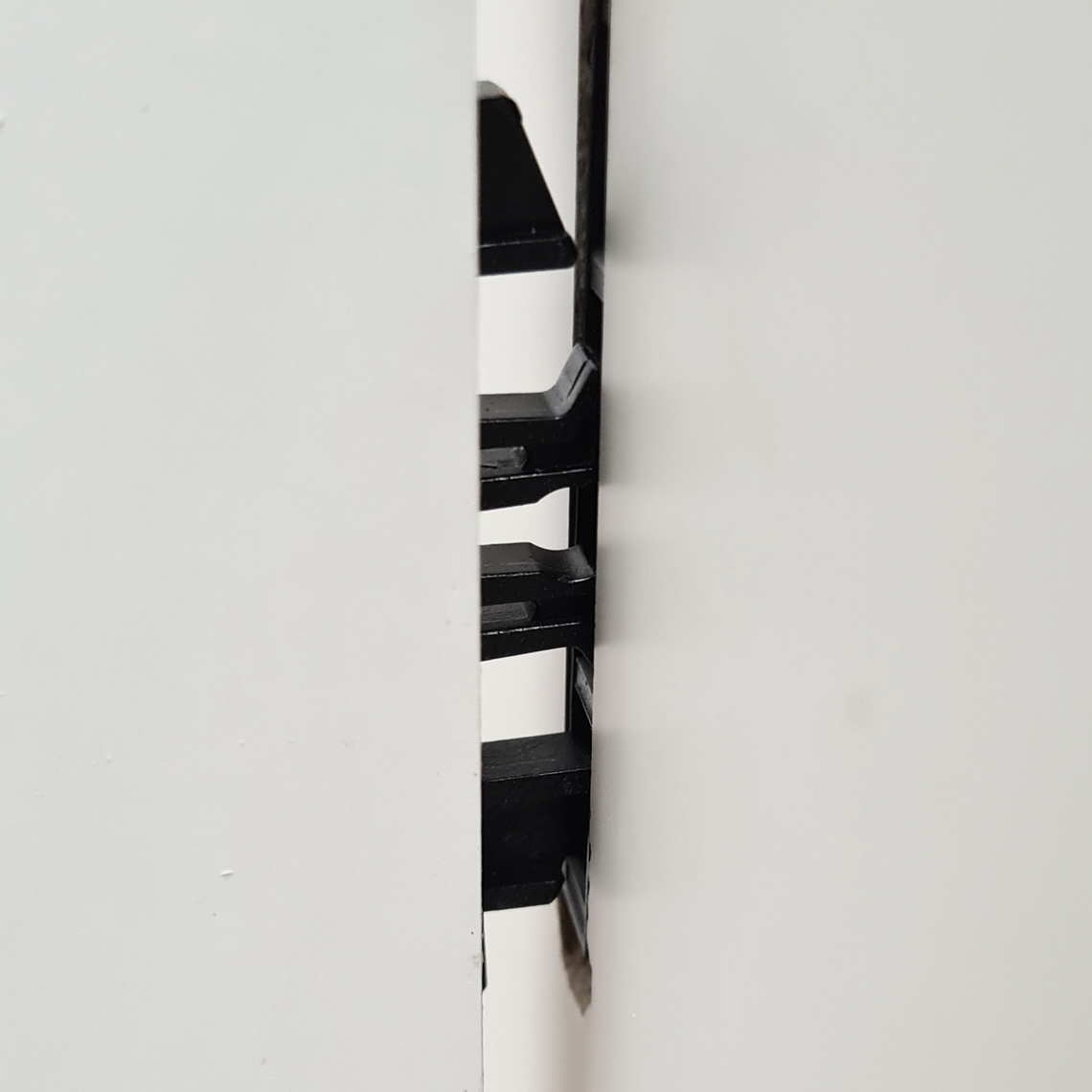

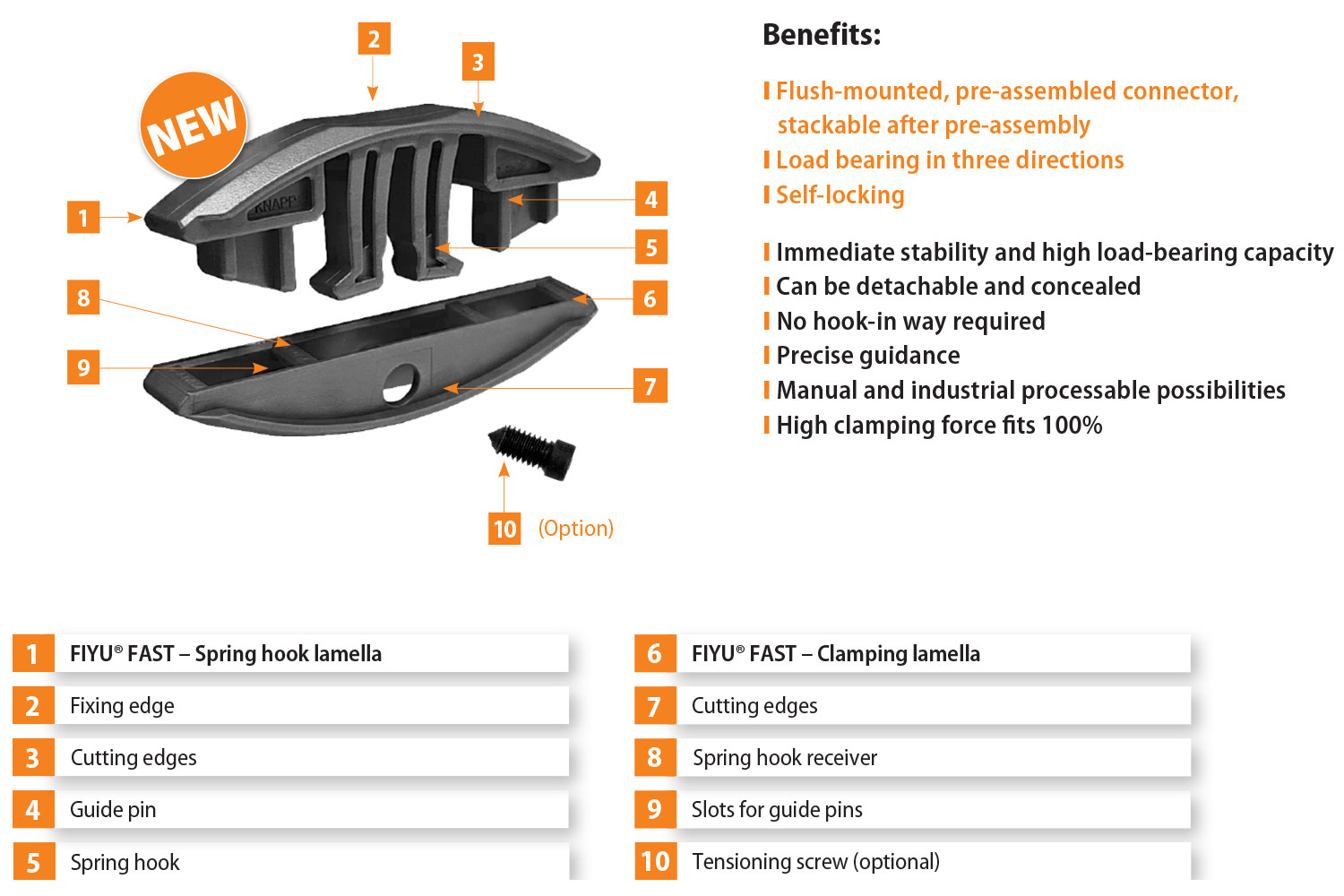

The FIYU® FAST from Knapp is a self-tensioning connector on a tongue and groove basis that can be screwed or glued. This allows connections to be made either reversibly or permanently. The FIYU® FAST 10 size now extends the range of applications to even thinner panels from 12 mm material thickness. The two-part product locks itself when assembled, so that the components assembled with it are automatically firmly interlocked.
| Application | For carcass components, intermediate shelves, angles from 0 to 135°, as well as for the retrofitting of shelves as shelf supports. Also suitable for fronts, claddings, covers, and profile strips to be mounted. |
| Advantages | Concealed, self-tightening, reassemblable connector – immediately load-bearing. |
| Material | All types of wood, wood-based and engineered materials (FIYU® LOCK), from 16 mm material thickness. All softwood and board materials (FIYU® FAST). |

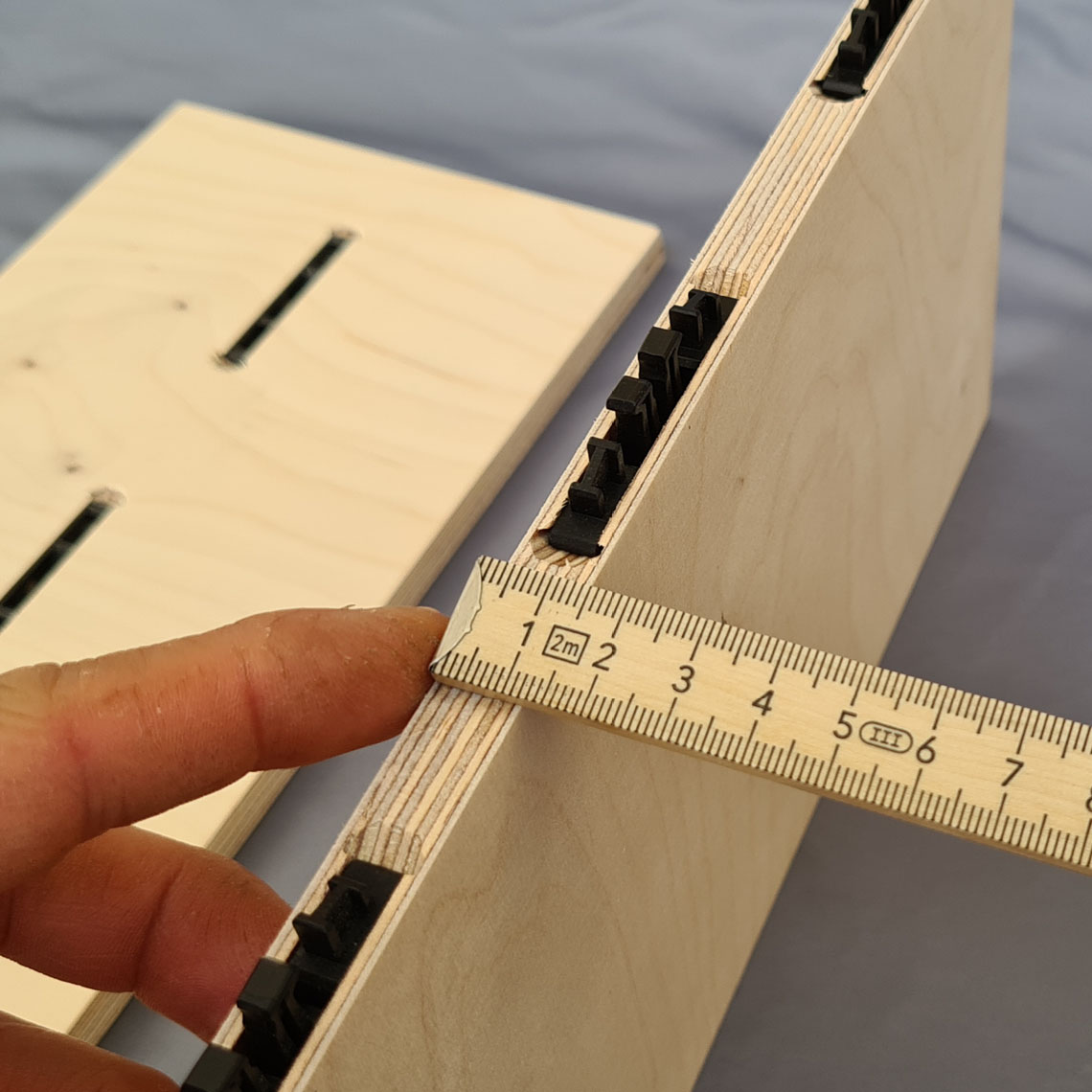

| Processing | With CNC router, biscuit joiner. Groove pattern: oscillating slot. Insert mounting and receiving parts into the milled groove. |

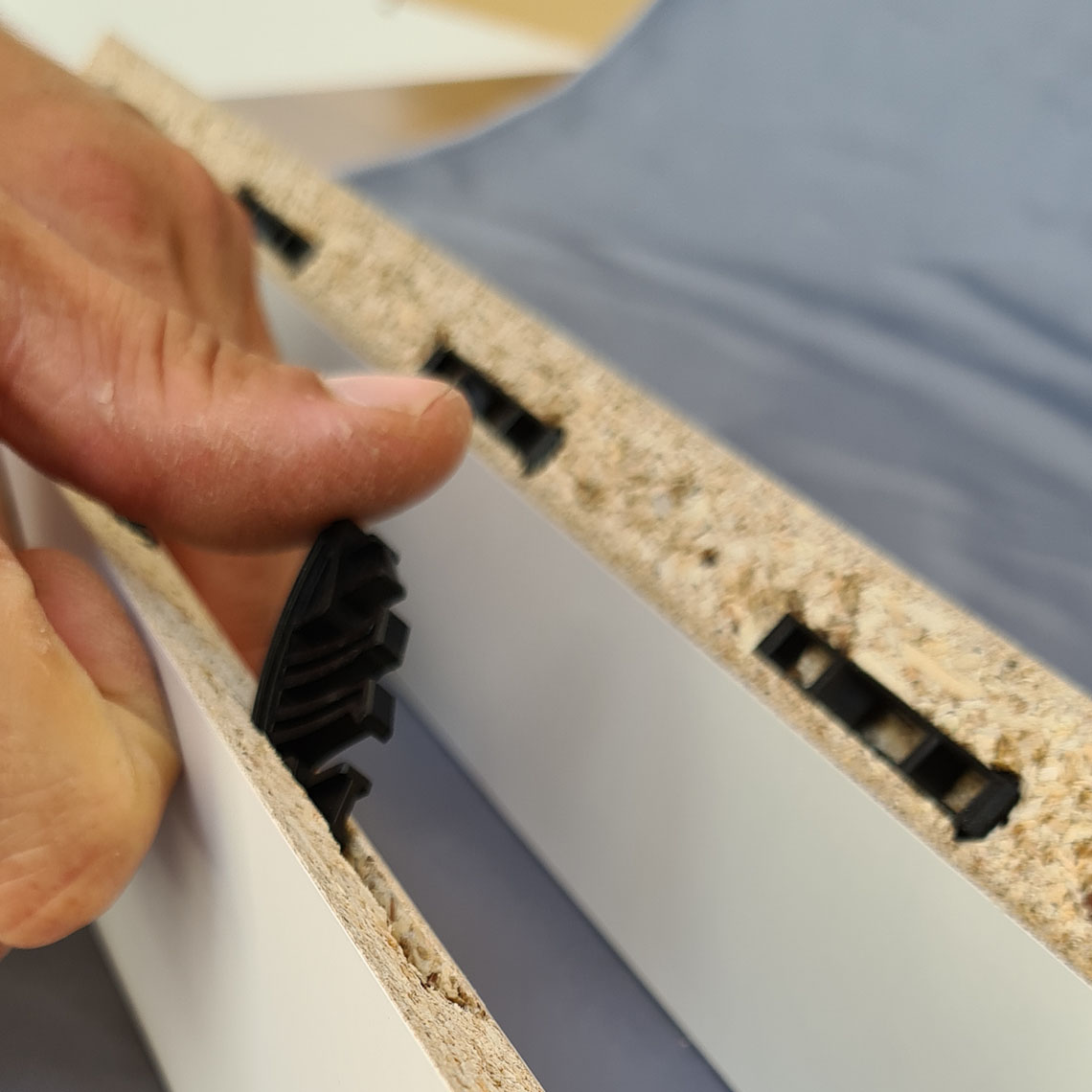

| Installation | Insert the connector flush with the edge directly without assembly distance, then connect the components. |
| Accessories |
FIYU® threaded pin 6×12 mm (for FIYU® FAST) | Item no. Z428 FIYU® clamping screw M5x13 mm (for FIYU® LOCK) | Item no. K857 Allen key 5 with ball end | Item no. Z647 |
