FIXclip – Moulding connectors for window construction (for fixing of glazing beads)

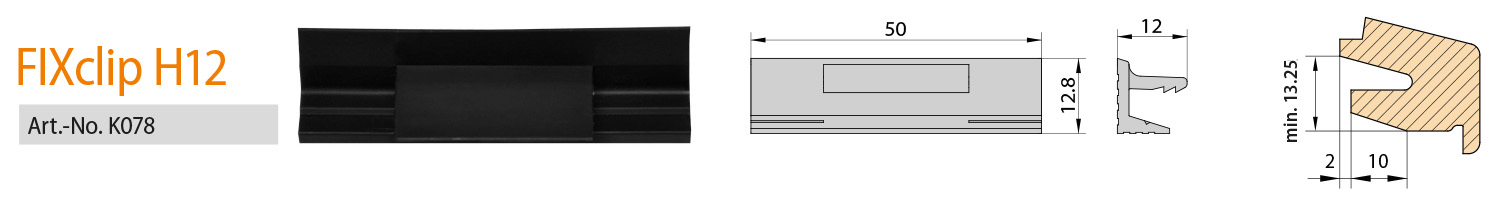

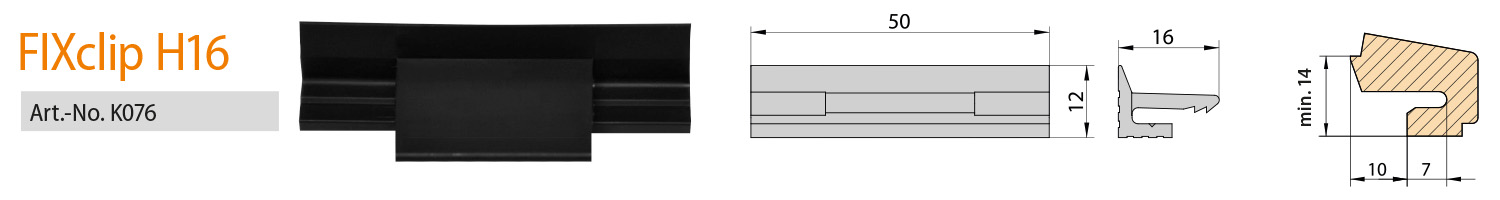

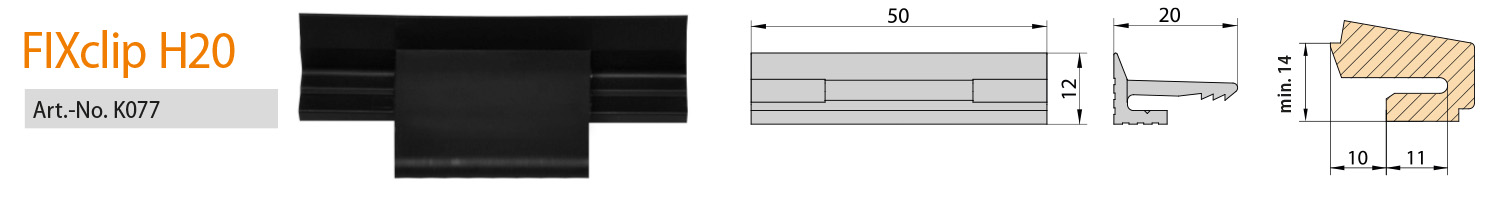

The FIXClip is a glass pane and glazing bead connector made of plastic that is completely concealed when installed. With the FIXclip, glass panes and moldings/trims are fixed in windows and doors without damaging the components like it would happen with conventional nailing or screwing. The FIXclip connector is used for wood windows and wood-aluminum windows, as well as fixed glazing. The connector is available in three sizes H12, H16 and H20.
- Perfect look – No visible fasteners.
- Fast – Reduces labor and effective production process guaranteed.
- Fastening – by nailing or screwing of the connector.
- Non-visible – Concealed mounting of glass pane and glazing bead.
- Can be disassembled without damaging the pane.
- Tested – for wind load C5 (EN 12210) and shock resistance class 3 (EN 13049).
For glazing beads, moldings made of timber and/or plastic.
